VMC1270 Vertical Milling Machine 4 Axis VCM CNC Machine

  • 1
  • 2
  • 3

Brand Name : Zaozhuang NO.1

Model Number : VMC1270

Certification : CE,ISO

Place of Origin : Shandong, China

MOQ : 1 set

Price : 40000USD

Payment Terms : T/T

Supply Ability : 1000 sets/month

Delivery Time : 15 days after getting the deposit.

Packaging Details : Export standard wooden case or as customers' requirement

Size of worktable (mm) : 1260*700

Maximum load on table（kg） : 1000

X/Y/Z Axis stroke（mm） : 1200*700*700

Spindle speed（rpm） : 8000

Machine weight(kg) : 8000

Overall size(mm) : 3400*2900*3000

Contact Now

VMC1270 Vertical Milling Machine 4-axis Cnc Vertical Machining Center with Best Price
Application:
The CNC machine tool features an optimized structure and shape design, characterized by compactness, rational layout, and enhanced rigidity. It is capable of machining a wide range of workpieces, including flat plates, shells, and complex components such as molds and CAM-designed parts. The machine performs drilling, milling, and tapping operations, making it well-suited for batch production. It effectively meets the processing needs for drilling, tapping, and milling of small to medium-sized workpieces.
Product Features:
1 High-precision castings, quenched to eliminate internal stress and ensure accuracy
2 CE standard electrical, neat lines, easy to troubleshoot and repair, high safety factor
3 The three-axis adopts high-precision ball screw, combined with precision nut preloading and tail pre-tensioning device to ensure that the backlash and thermal deformation of the machine are kept low for a long time.
4 The spindle tool change mode adopts pneumatic mechanism. When the tool is used, the spindle is evenly stressed to prolong the bearing life.
5 High-precision Taiwan spindle, good stability and long life
6 Select the wiring linear guide, the brand of Taiwan silver, with high rigidity, low noise characteristics, can do rapid
displacement and obtain the best cycle accuracy.
7. Fully automatic electronic lubrication system for uniform oil supply and good stability.
Standard configuration:
1. syntec 22ma control system
2. bt40 Taiwan 8000 RPM spindle
3.Taiwan hiwin screw
4.Taiwan hiwin 3 axis roller linear rails
5.Taiwan OKADA 24 -disc-atc

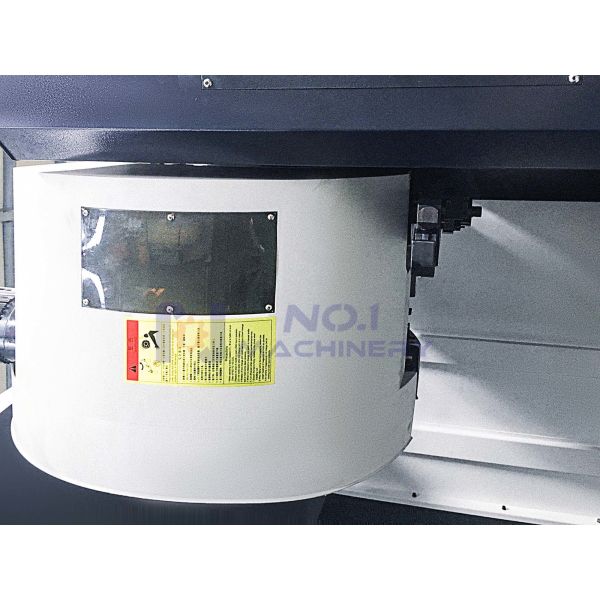

6.Electrical cabinet cold air exchanger
Product Specification:
SPECIFICATIONS
Units
VMC1270
Table size
mm
1260*700
X axis travel
mm
1200
Y axis travel
mm
700
Z axis travel
mm
700
Max. worktable load
kg
1000
T slot(number-width*pitch)
-
5-18*110
Max. spindle speed
rpm
8000
Spindle taper
mm
BT40
Main motor power
kw
11/15
X/Y/Z rapid traverse speed
m/min
24/24/18
Cutting feed speed
mm/min
1-6000
Guide rail type
-
Distance from spindle axis to column surface
mm
750
Distance between spindle nose and table surface
mm
100-800
Positioning accuracy
mm
0.0075
Repeat positioning accuracy
mm
0.005
Tool magazine
-
Arm 24
Max. tool diameter
mm
78/120
Max. tool weight
kg
18
Machine weight
kg
8000
Overall dimension(L*W*H)
mm
3400*2900*3000
Product Display

VMC1270 Vertical Milling Machine 4 Axis VCM CNC Machine

VMC1270 Vertical Milling Machine 4 Axis VCM CNC Machine

VMC1270 Vertical Milling Machine 4 Axis VCM CNC Machine
